Railway Audible Track Signal Magazines


Theft, misuse, and neglect of these track signals can be greatly reduced by our safe custody storage magazine for the Audible Track Signal Explosives Class 1.4S. Storage is no longer a problem when they are lawfully stored in our Track Signal Magazines. The magazines are built in compliance with and exceed the requirements of AS2187.1-1998 and have been reviewed by WorkCover Authority of NSW.

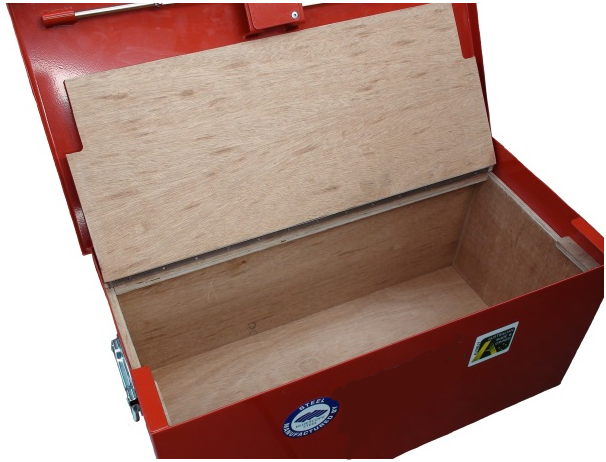

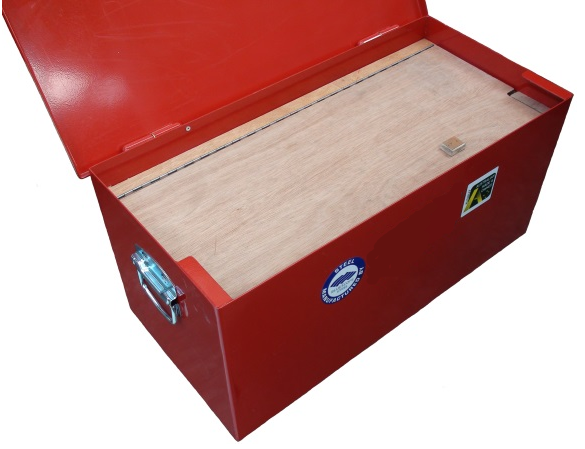

These safe custody storage magazines are designed to stop the theft of Class 1.4s Audible Track Signal Detonators either on-site or when traveling from job to job. The lid when closed is anchored in place by internal heavy-duty hinges and high-tensile steel locking rods. We use the high-security, BiLock registered key locking system. NO PADLOCKS. The wood lining prevents static build-up that can ignite stored explosives.

The magazines are built in compliance with and exceed the requirements of AS2187.1-1998 and have been reviewed by WorkCover of NSW and members of the AIDGC. MADE IN AUSTRALIA

Model Description  Outer Dimensions

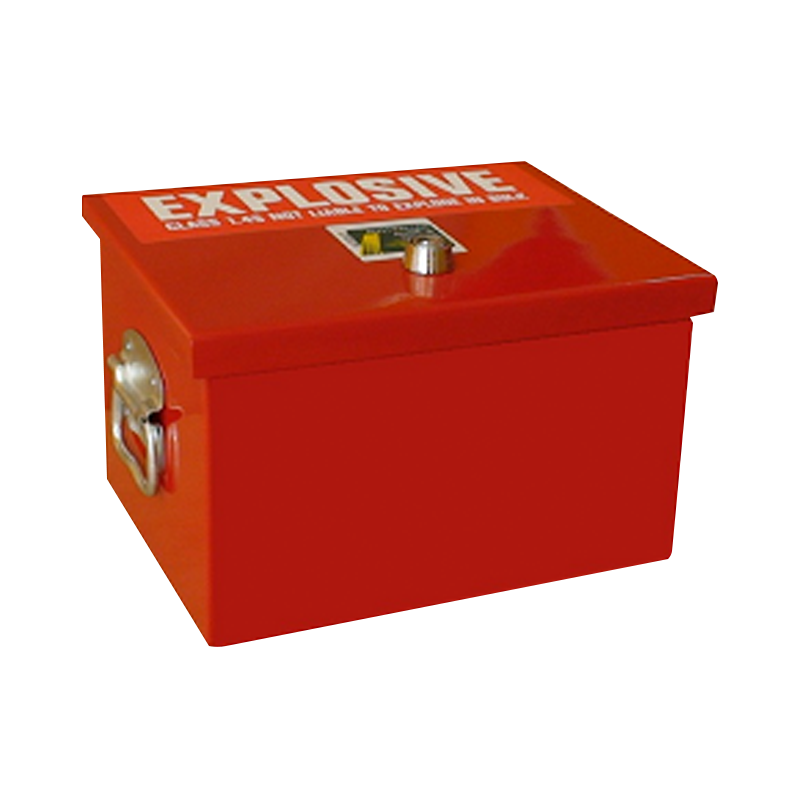

TSM250-R Class 1.4s Audible Track Signal Magazine-small L315mm x D250mm x H205mm

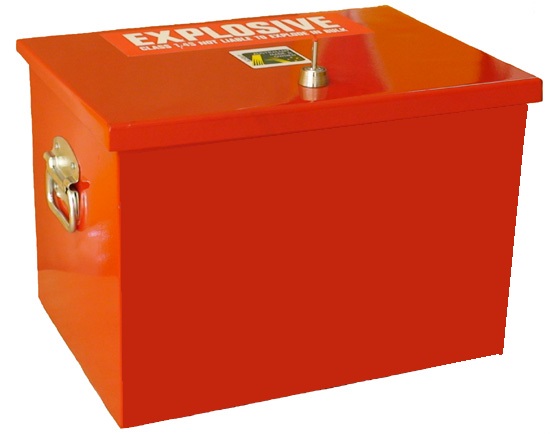

TSM470-R Class 1.4s Audible Track Signal Magazine-medium L470mm x D350mm x H330mm
TSM700-R Class 1.4s Audible Track Signal Magazine-large L700mm x D360mm x H330mm

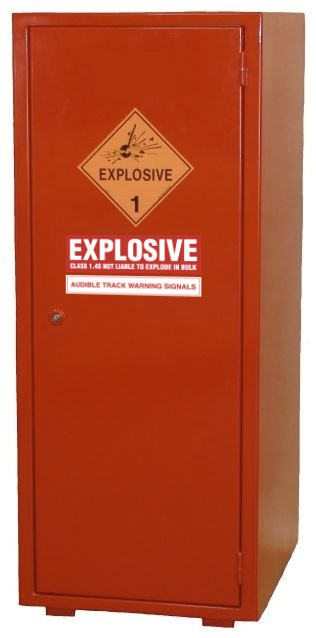

SC-S-R Railway Internal Portable Magazine PC Red, Wood Lined(Single Door) W600mm x H1475mm x D710mm

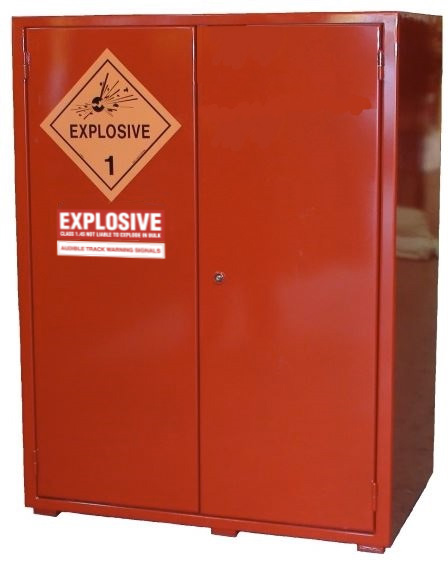

SC-D-R Railway Internal Portable Magazine PC Red, Wood Lined(Double Door) W1100mm x H1475mm x D710mm

Additional information

Weight N/A
Dimensions N/A

SC-D-R, SC-S-R, TSM250-R, TSM470-R, TSM700-R
